ShockRite SRM402 0.2J Energiser

ShockRite SRM402 Mains Energiser

The ShockRite SRM402 0.2J Mains-Powered Energiser can power an electric fence up to 1km in length which makes it ideal for smaller holdings with a mains-supply nearby. Mains-power is a reliable and economical way to power your electric fence.

This Compact and Light-weight unit arrives with Connection Cables and Earth Stake/Ground Rod included.

Quick Overview

• 0.2J Power Energiser
• 3 Year Warranty
• An Easy-to-Read Green Light will Flash Every 1.5 Seconds to Show the Energiser is Receiving Power and Operating
• No Experience Needed to Set Up & Use
• Powers Fence Length up to:
  • 1km of Wire/Tape (No vegetation on fencing)

Contents

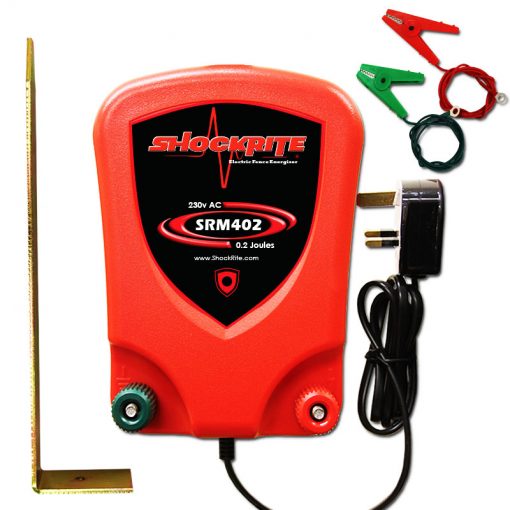

ShockRite SRM402 230V Mains-Powered Energiser
2 x Connection Cables (1 x Green Earth Connection Cable, 1 x Red Fence Connection Cable)

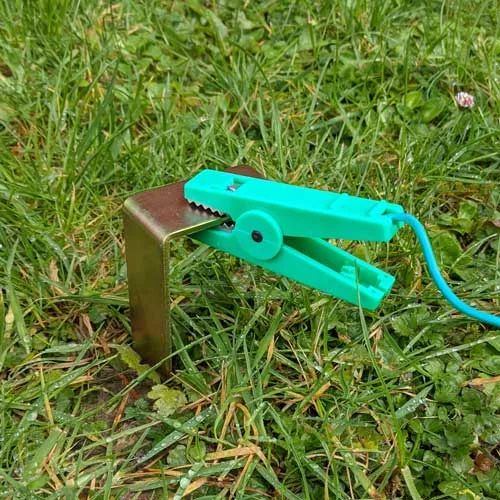

Earth Stake/Grounding Rod
Assembly and Instruction Manual

Full Details

• Dust-Proof Housing

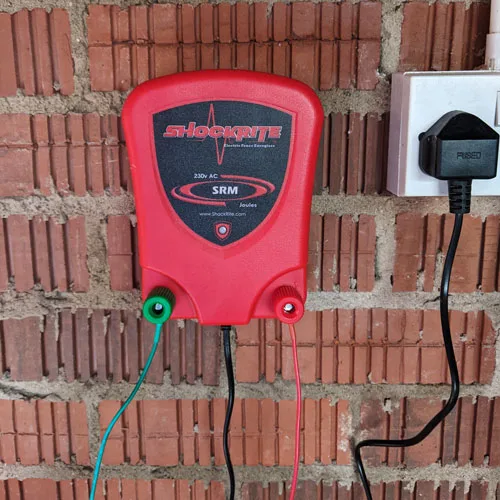

• Rear Mounting-Hole Designed into Unit Casing for Quick Installation
• Built-in Lightning Protection
• Internal Radio Frequency Interference Suppression
• CE & RoHS Certified
• Top-Quality and Made in the UK

Technical Specifications

Input

Power Supply Voltage: 230V Mains Supply/50Hz

Output

Open Volts: 8,500V
500 Ohm Load Volts: 3,200V
Power Output at 500 ohms: 0.2J
Effective Length Using Polywire or Polytape: 1 km (no veg)
Effective Length Using Galvanised Wire: 1km

Not Suitable For Electric Fence Netting

Energiser Body Dimensions: 175 x 135 x 60mm

This ShockRite Electric Fence Energiser Comparison Chart is an overview of all ShockRite energisers in one place. It may make it easier to decide what energisers suit your requirements
