SRM Mains Energiser Mounting Slots-Back View

ShockRite SRM406 0.6J Energiser

Name: ShockRite SRM406 0.6J Energiser
SKU: 197
Price: 66.01 EUR
Availability: InStock
Rating: 5.00 (5 reviews)

Rated 5.00 out of 5 based on 5 customer ratings

€66.01 Inc VAT

– Mains Powered – Power Output 0.6J – 3 Year Warranty –

ShockRite SRM406 Mains

The ShockRite SRM406 0.6J Energiser can power an electric fence of polywire/polytape up to 3km in length, and is ideal for horses, cows, pigs, goats and chickens. The Unit arrives with Connection Cables and Earth Stake/Ground Rod included.

Quick Overview

0.6J Power Energiser
3 Year Warranty
An Easy-to-Read Green Light will Flash Every 1.5 Seconds to Show the Energiser is Receiving Power and Operating
No Experience Needed to Set Up & Use
Powers Fence Length up to:
- 3km of Wire/Tape
- 5 Electric Sheep Nets
- 50m Poultry Netting (No vegetation on fencing)

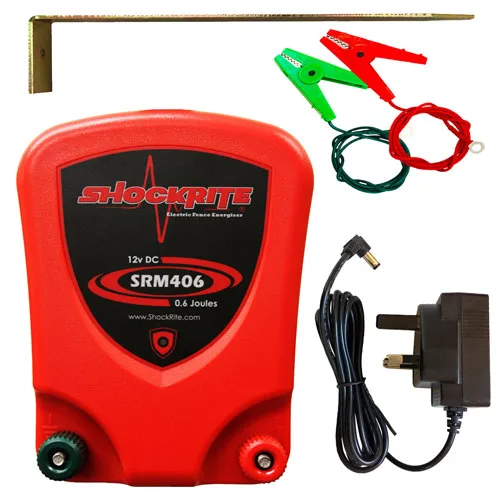

ShockRite SRM406 0.6J Energiser
2 x Connection Cables (1 x Green Earth Connection Cable, 1 x Red Fence Connection Cable)
Earth Stake/Grounding Rod
Assembly and Instruction Manual

Full Details

Dust-Proof Housing

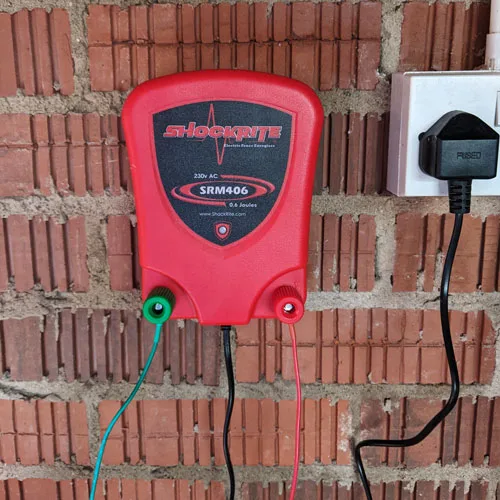

Rear Mounting-Hole Designed into Unit Casing for Quick Installation
Built-in Lightning Protection
Internal Radio Frequency Interference Suppression
CE & RoHS Certified
Top-Quality and Made in the UK

Technical Specifications

Input

Power Supply Voltage: 12V DC Supply/50Hz
Power Consumption: 0.8W

Output

Open Volts: 10,000V
500 Ohm Load Volts: 4,500V
Power Output at 500 Ohms: 0.6J
Stored Energy: 0.7J
Effective Length Using Polywire or Polytape: 3km (no veg)
Effective Length Using Galvanised Wire: 10km

Plastic Case Dimensions: 175 x 135 x 60mm

This ShockRite Electric Fence Energiser Comparison Chart is an overview of all ShockRite energisers in one place. It may make it easier to decide what energisers suit your requirements

Weight	1.4 kg
Animal	Chicken, Cow, Donkey, Fox, Goat, Horse, Mink, Pig, Pony, Rabbit, Sheep, Squirrel
Joules	0.6
Power	Mains
Brand	ShockRite
